PocketStats app - how to integrate with GetPocket Api and visualize reading stats



I am a person who likes to motivate myself through figures and compare my results with others. I spend most of my time on the Internet. I subscribe a dozen newsletters, read the RSS feeds of dozens of blogs, browse social media like LinkedIn and Twitter regularly. Every day there are a lot of links to sites, documents, tools I want to familiarize myself with.

I use app GetPocket to track links to read later. It supports android, ios, web, has plugins for browsers. It simply works. I click on “save to pocket” and the link is added to the “to read” list in the app. At my leisure, I browse the links, archive, mark the most interesting passages, save the links to “favorites”. And so I have been using it for almost 11 years now. I really miss the ability to preview my statistics, e.g. how many links I have reviewed today, how many links I have since reviewed, how many I have added today, etc. etc.

Only 5% and 1% of the most active users get a nice annual report :/

The developers have released a REST API - https://getpocket.com/developer/docs/overview. I decided to create a side project application and solve my problem with no stats dashboard in GetPocket. I created a simple CLI Spring boot application with a database - MongoDB. Plus a simple Jupyter Notebook to generate charts and tables.

Why such a technology stack? I work with Java and spring boot on a daily basis, I know these tools and I know how to build an application quickly. The plan is to build a UI and make the application available for multi-user use. If you would be interested in using such an application, please give me a supportive comment ;) It is more pleasant to create something if I know it will be used.

You can find the application code on my github: https://github.com/michmzr/PocketStats

Authorization and authentification with Pocket API

In order to use PocketAPI then I first had to create the application using https://getpocket.com/developer/apps/new. If you want to fire up the application locally, you will also have to do the same.

This is what the configuration looks like in my case: I marked the red box CONSUMER KEY It will be needed when registering the user and getting the access key.

GetPocket Api uses Ouath2, so the application only stores the access token of the user. User just needs to log in through the PocketStats-generated authorization link, log in to GetPocket and allow PocketStats to connect.

Diagram of the authorization process.

sequenceDiagram
    User->>PocketStats: Execute `authorize` command
    PocketStats->>GetPocket: Acquire `auth code`
    GetPocket->>PocketStats: Returns `auth code`
    PocketStats->>User: Return `authorization link`
    User->>GetPocket Oauth UI: Click on `authorization link` and authorize PocketStats
    GetPocket Oauth UI ->> PocketStats: User is redirected to PocketStats

access token i auth code are stored in a file in the application’s current directory in the json form.

{"code":"...","accessCode":"..."}

Technological Stack

I decided to use:

  • Spring Boot v3
  • Gradle
  • Java min 17 version
  • MongoDB - docker version latest.
  • Docker - MacOs Arm version
  • Spock 2 + groovy 3 for testing

I use gradle 7v to build project. I decided to use it, actually for learning. I have been using Maven on a daily basis for several years. I decided to do an experiment and see how Spring Boot 3 will work with the latest gradle. In Grade I like the more readable source file, the way it works than in Maven.

Why MongoDB? I wanted to play with the technology, see how I like to work with this database. It’s perfect for holding the Jsons it receives from the API. The bottleneck might be analytics and preparing individual statistics in the future.

Using docker and docker service file, you can create a ready-made MongoDB container on the latest version. https://github.com/michmzr/PocketStats/blob/master/src/main/docker/mongodb.yml

Application setup

You need to define an environment variable POCKET_CONSUMER_KEY, which stores the value of the consumer key returned by GetPocket when creating a new Oauth application. For more on this process, see authorization

Application interfaces

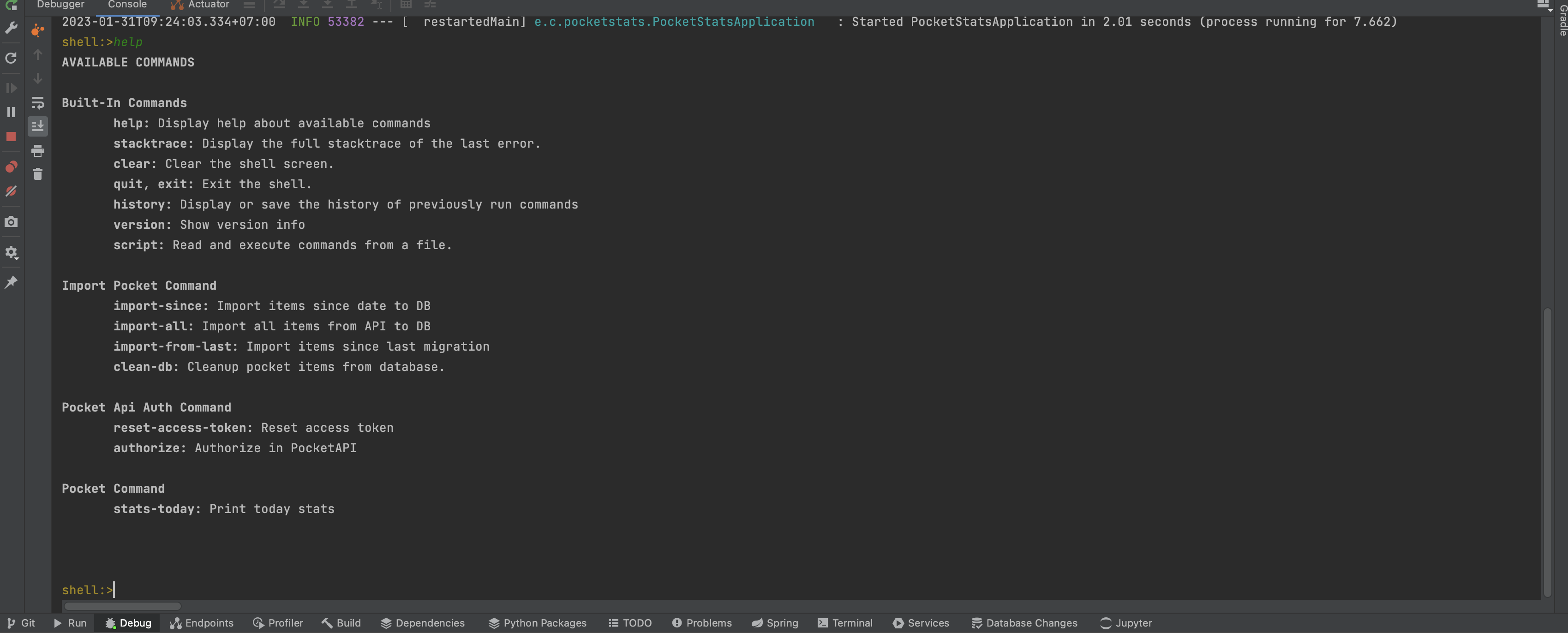

I decided to develop the app as a CLI application in the MVP version. This requires less work than creating a front end or designing endpoints under REST. I used Spring Shell to handle the commands. When you launch the application, a prompt appears in the console where you type commands.

Supported commands, their parameters and run conditions are defined using annotations. It works very smoothly :)

Example class file which defines import commands.

@ShellComponent
public class ImportPocketCommand extends SecuredCommand {
    ...

    @ShellMethod("Import items since last migration")
    @ShellMethodAvailability("isUserAuthorized")
    public void importFromLast() throws IOException, InterruptedException {
        shellHelper.print("Imported: " + pocketApiService.importFromSinceLastUpdate());
    }

    @ShellMethod("Import all items from API to DB")
    @ShellMethodAvailability("isUserAuthorized")
    public void importAll() throws IOException, InterruptedException {
        shellHelper.print("Imported: " + pocketApiService.importAll());
    }

    @ShellMethod("Import items since date to DB")
    @ShellMethodAvailability("isUserAuthorized")
    public void importSince(@ShellOption(value = {"-s", "--since"}, help = "Use date in DD-MM-YYYY format")
                            @CheckDateFormat(pattern = EXPECTED_DATE_FORMAT) String date) throws IOException, InterruptedException {
        DateTimeFormatter formatter = DateTimeFormatter.ofPattern(EXPECTED_DATE_FORMAT);
        LocalDateTime dateTime = LocalDate.parse(date, formatter).atTime(0, 0, 1);

        var sinceWhen = dateTime.withHour(0).withMinute(0).withSecond(1).atZone(ZoneId.systemDefault()).toInstant();

        shellHelper.print("Imported: " + pocketApiService.importAllToDbSince(sinceWhen));
    }

    @ShellMethod("Cleanup pocket items from database.")
    @ShellMethodAvailability("isUserAuthorized")
    public void cleanDb() {
        repository.deleteAll();

        shellHelper.printInfo("Collection of pocket items got cleaned.");
    }

    ...
}

Methods are annotated with @ShellMethod are run from the console. The method name is replaced with kebab-case. For example, the importAll method can be run with the import-all command.

@ShellMethod("Import all items from API to DB")
    @ShellMethodAvailability("isUserAuthorized")
    public void importAll() throws IOException, InterruptedException {
        shellHelper.print("Imported: " + pocketApiService.importAll());
    }

The @ShellMethodAvailability annotation runs an AOP method that checks whether a command can be run by a user. For example, you can check if the user is logged in. My application requires that the user has previously authorized GetPocket and OAuth2 credentials have been retrieved.

public abstract class SecuredCommand {
    @Autowired
    PocketAuthorizationService authorizationService;

    public Availability isUserAuthorized() {
        if (authorizationService.getCredentials().isEmpty()) {
            return Availability.unavailable("you are authorized to GetPocket Api. Please use authorize command to be " + "able to " + "use " + "this command!");
        } else {
            return Availability.available();
        }
    }
}

Items import from GetPocket

Statistics are calculated based on the contents of the database plugged into the application. If someone wants, he can rewrite the code, so that it calculates the statistics immediately after receiving the response, bypassing the database ;)

I decided to use a local database because of the speed of the solution, the ability to save the calculated statistics, information about users.

The heart of the integration is the PocketApiService.java class and the generic callGetApi method:

...

private PocketGetResponse callGetApi(Map%3CString, Object%3E extraFields) throws IOException, InterruptedException {
        Map<Object, Object> payloadData = new HashMap<>();
        payloadData.put("consumer_key", pocketConsumerKey);
        payloadData.put("access_token", getCreds().accessCode());
        payloadData.putAll(extraFields);

        String payload = mapper.writeValueAsString(payloadData);
        HttpRequest request = HttpRequest.newBuilder().POST(HttpRequest.BodyPublishers.ofString(payload)).uri(URI.create(pocketGetUrl)).header("Content-Type", "application/json").header("X-accept", "application/json").build();

        HttpResponse<String> response = client.send(request, HttpResponse.BodyHandlers.ofString());

        logResponse(response);

        switch (response.statusCode()) {
            case 200:
                return getPocketGetResponse(response);
            case 401:
                handle401(response);
                break;
            case 400:
            case 403:
            case 500:
            case 504:
                handleOtherHttpErrorCode(response);
            default:
                throw new IllegalStateException("Not expected http response code " + response.statusCode());
        }

        throw new IllegalStateException("Not expected http response code " + response.statusCode());
    }

    private PocketGetResponse getPocketGetResponse(HttpResponse<String> response) throws JsonProcessingException {
        return mapper.readValue(response.body(), PocketGetResponse.class);
    }

    private void handleOtherHttpErrorCode(HttpResponse<String> response) {
        log.error("Handling {} error", response.statusCode());
        ApiXHeaders apiXHeaders = ApiXHeaders.of(response);

        throw new IllegalStateException(String.format("Http request failed with status: %s." + "Api pocket responded with 401, " + "error code: %d, " + "error description: %s", apiXHeaders.status(), apiXHeaders.errorCode(), apiXHeaders.error()));
    }

    private void handle401(HttpResponse<String> response) {
        log.info("Handling 401 error");
        ApiXHeaders apiXHeaders = ApiXHeaders.of(response);

        throw new IllegalStateException("Generate new token!. Authorization failed with status: '%%s'. Api pocket responded with 401, error code: %%d, %s".formatted("error description: %s".formatted(apiXHeaders.status(), apiXHeaders.errorCode(), apiXHeaders.error())));
    }

    private void logResponse(HttpResponse<String> response) {
        log.debug("status: {}", response.statusCode());

        // print response body
        if (response.statusCode() != HttpStatus.OK.value()) {
            log.debug("response: {}", response.body());

            ApiXHeaders apiXHeaders = ApiXHeaders.of(response);
            log.debug("api X headers: {}", apiXHeaders);
        }
    }

    public PocketUserCredentials getCreds() {
        return authorizationService.getCredentials().orElseThrow(() -> new IllegalStateException("Not found saved credentials. Authorize to service first"));
    }

    ...

The callGetApi function is responsible for executing the request and processing the response from the server.

The imported items(links) history from GetPocket is kept in the MongoDB’s pocketItem document.

REST/web endpoints

The application publishes only one http endpoint - pocket/auth. It’s needed to confirm the completion of the authorization flow. User after successful authorizations is redirected to this url.

@Slf4j
@RestController
@RequestMapping("/pocket/auth/")
public class PocketApiController {
    @Autowired
    private PocketAuthorizationService authorizationService;

    @GetMapping("token")
    public String onRedirect() {
        log.info("Redirection successful.");

        authorizationService.deregisterAuthSession();

        return "authorized app. You can go back to console.";
    }
}

Raport

I prepared a jupiter notebook raport.ipynb, where Pandas library loads data from the database and generates charts and tables.

In the next version of PocketStats I would like to have a simple visual dashboard on frontend. I think to use Vue.

Contact

I hope what I wrote is useful :). Please leave any comments to let me know. If you have any questions, please feel free to contact me directly on:

You can also find my posts on my second blog Geekowojażer.pl
